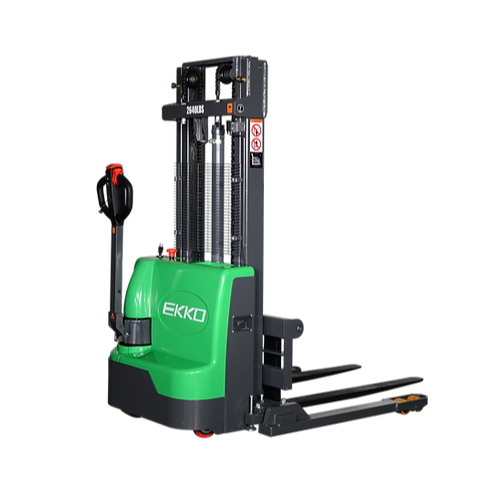

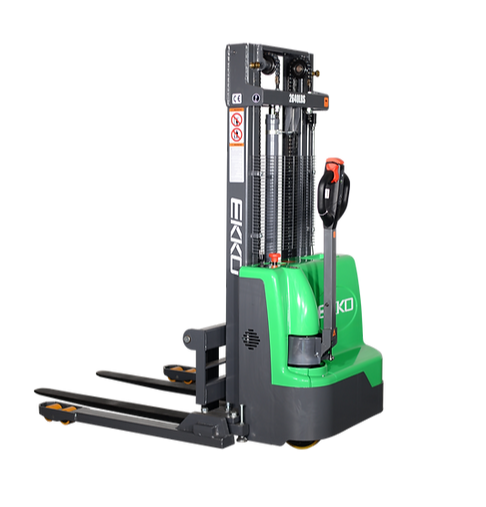

EB12E-98LI Full LI-ION Straddle Stacker - 2,640 lb Cap.

• DC Drive Motor, 24V for smooth and efficient operation
• Maintenance-free 24V/60Ah lithium battery with internal charger
• Curtis Instrument Controller for precise control
• Compact, easy to maneuver in tight spaces
• Adjustable forks and legs for flexible load handling
• Durable steel construction with robotic welding
• Polyurethane wheels for smooth movement
• Ergonomic handle and controls for operator comfort
• Versatile design for loading/unloading trucks, stockrooms, manufacturing floors, and warehouses

• Load Capacity: 2,640 lbs
• Lowered Mast Height: 72"
• Maximum Lift Height: 98"
• Extended Mast Height: 119.96"
• Adjustable Fork Width: 8.3–33.5"
• Fork Length: 45.3"
• Load Center Distance: 24"
• Service Weight: 1,300 lbs
• Wheel Material: Polyurethane
• Overall Length: 71"
• Turning Radius: 52.6"
• Lift Speed (laden/unladen): 92/136 mm/s
• Lowering Speed (laden/unladen): 112/98 mm/s
• Travel Speed (laden/unladen): 4.0/4.2 km/h
• Maximum Climbing Ability (laden/unladen): 6/8%
• Steering: Mechanical
• Control Type: DC

3-Year Limited Warranty covering frame, forks, mast, drive components, traction motor, lift motor, and electronic controls.
