Power Lift Essentials

VESTIL - ELECT HYDRAULIC LIFT TABLE 10K 48X48

VESTIL - ELECT HYDRAULIC LIFT TABLE 10K 48X48

$9,600.00
$9,600.00
Shipping calculated at checkout.

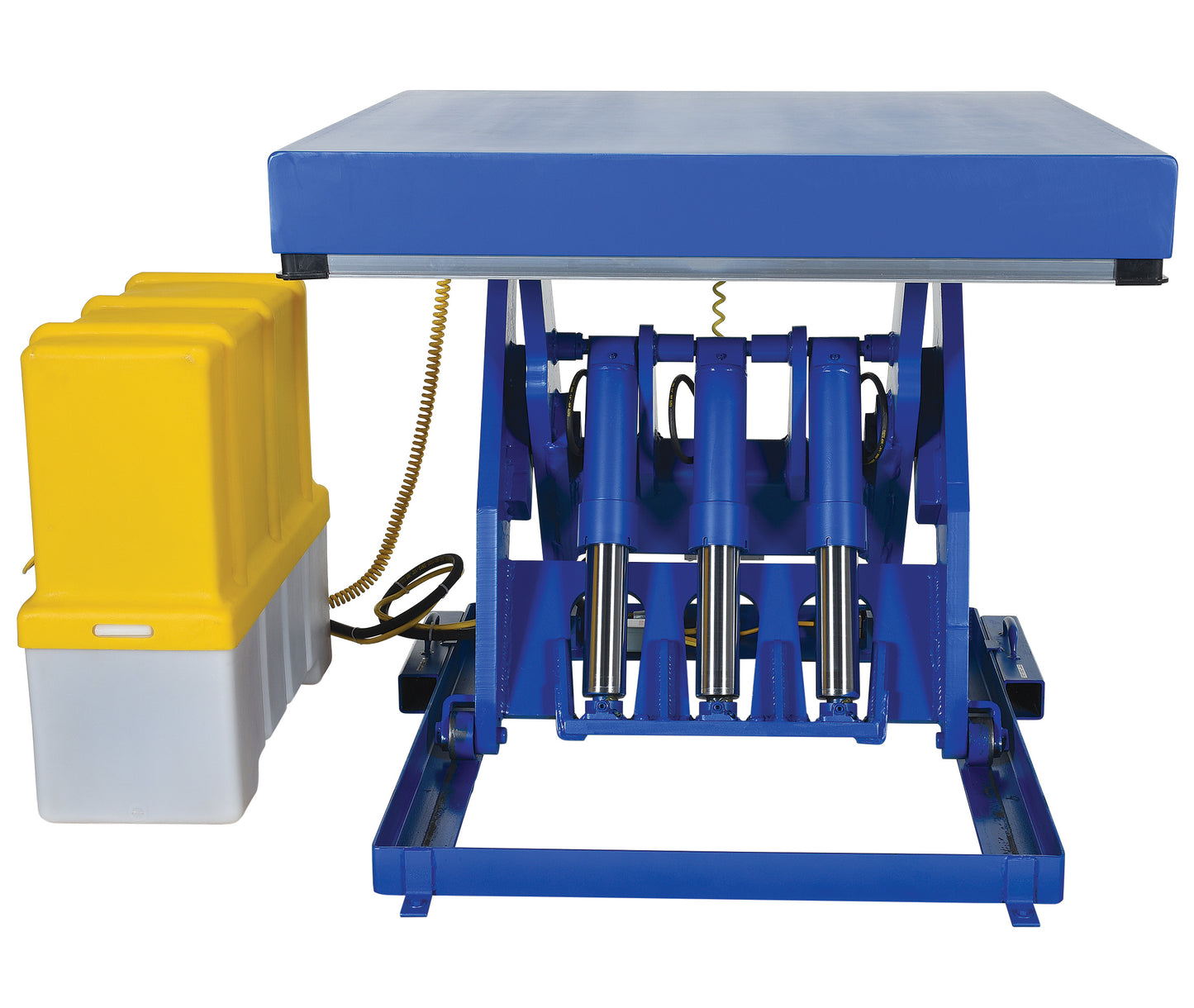

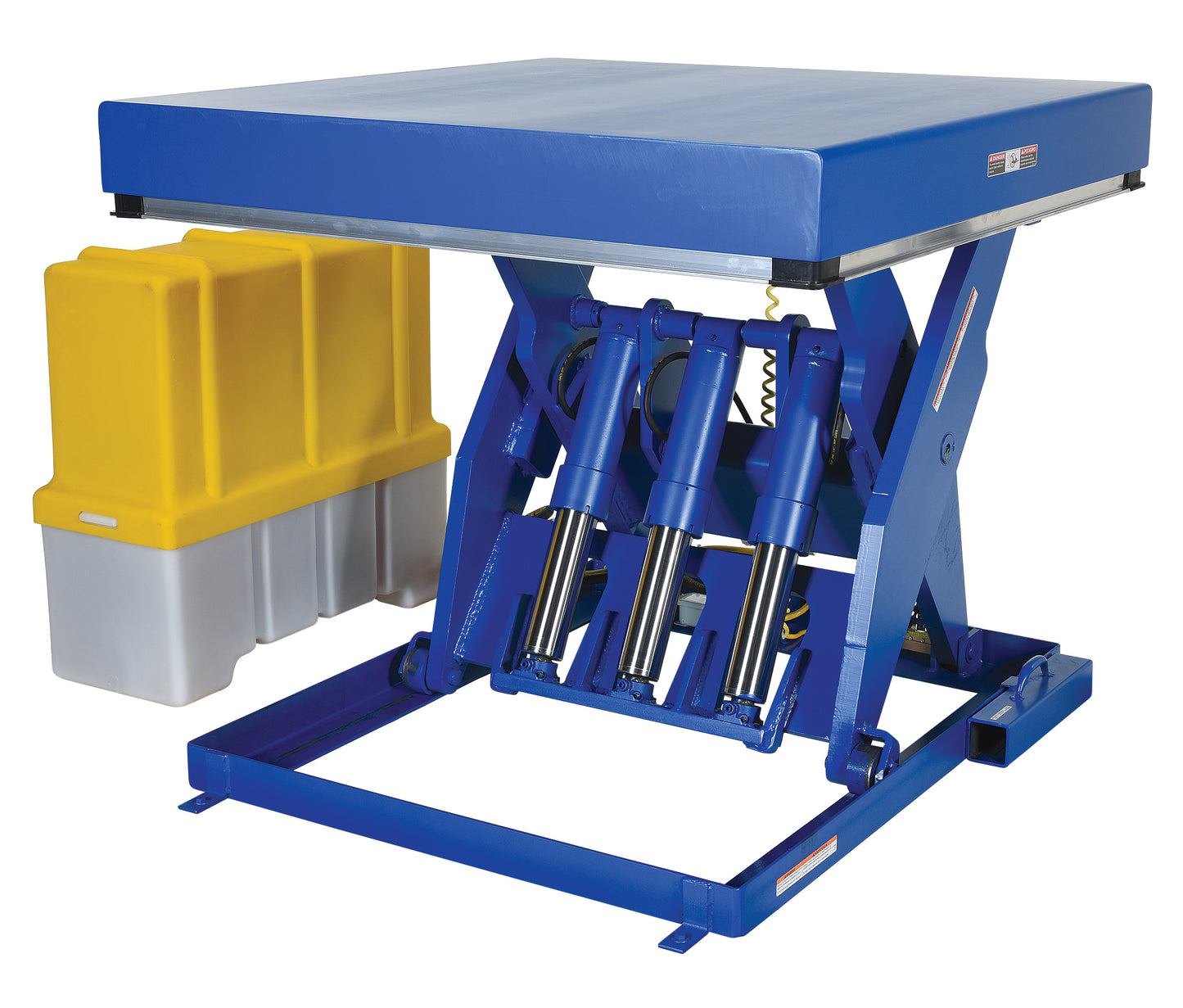

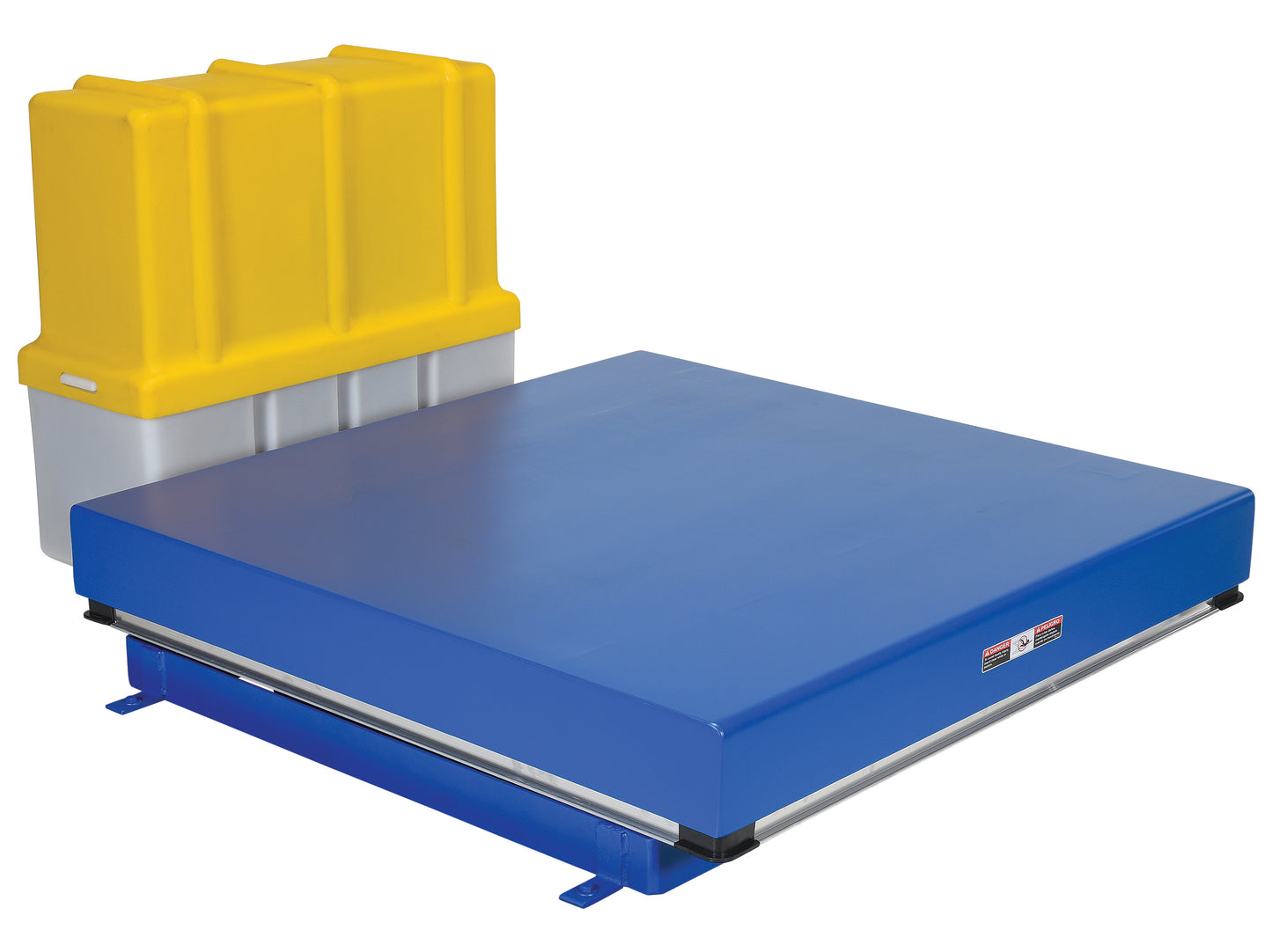

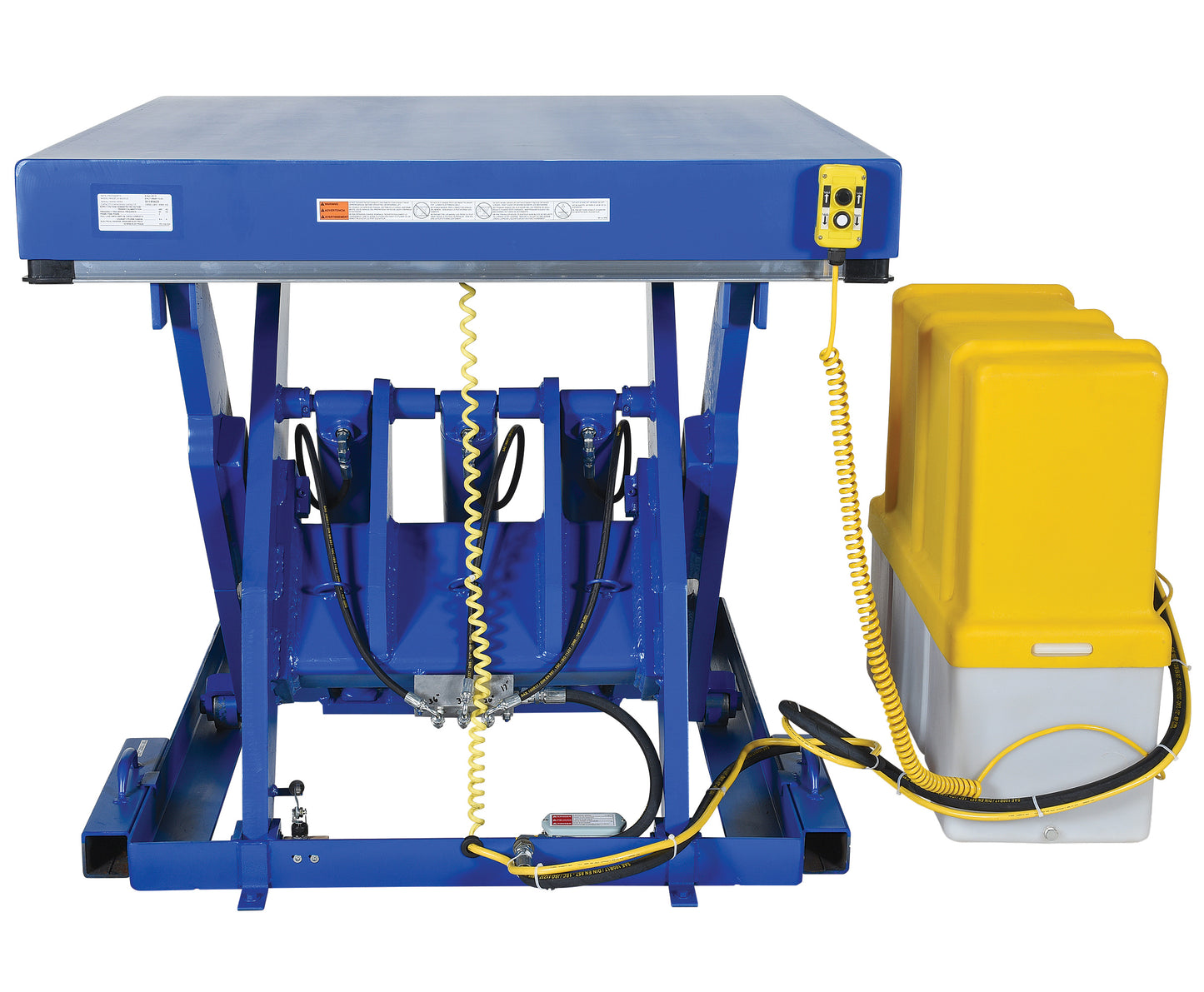

The Vestil EHLT-4848-10-43 Electric Hydraulic Lift Table is a heavy-duty industrial lift designed for warehouses, factories, and shipping docks. With a powerful 10,000 lb capacity, electric hydraulic operation, and a spacious 48" × 48" platform, it delivers smooth, safe, and efficient lifting performance in demanding environments.

⚡ Key Features

• 10,000 lb Capacity — Built for the heaviest material-handling tasks.

• Electric Hydraulic Power — Provides smooth, controlled lifting via a robust hydraulic system and sealed electric motor.

• Heavy-Duty Steel Construction — Rugged welded steel frame with OSHA-compliant four-sided toe guard ensures durability and safety.

• Safety Mechanisms — Features include electric toe guards, velocity fuse, push-button control, upper travel limit switch, and maintenance prop for operator protection.

🔧 Specifications

• Platform Size: 48" × 48"
• Capacity: 10,000 lb uniform load
• Travel Time: ~15 seconds to raised height
• Raised Height: 43"; Lowered Height: 10"; Vertical Travel: 33"
• Hydraulic Rating: 3,000 psi components
• Motor: Fully enclosed (standard 2 HP/460 V/3-phase), optional voltages available
• Cord: 96" push-button control
• Weight (Approx.): 1,719 lb shipping weight

🛡️ Warranty Information

Comes with a 1-year limited parts warranty plus 90-day wearable parts coverage, offering confidence and longevity

Expected delivery date
12 Oct Usually ready in 7 -14 days.
