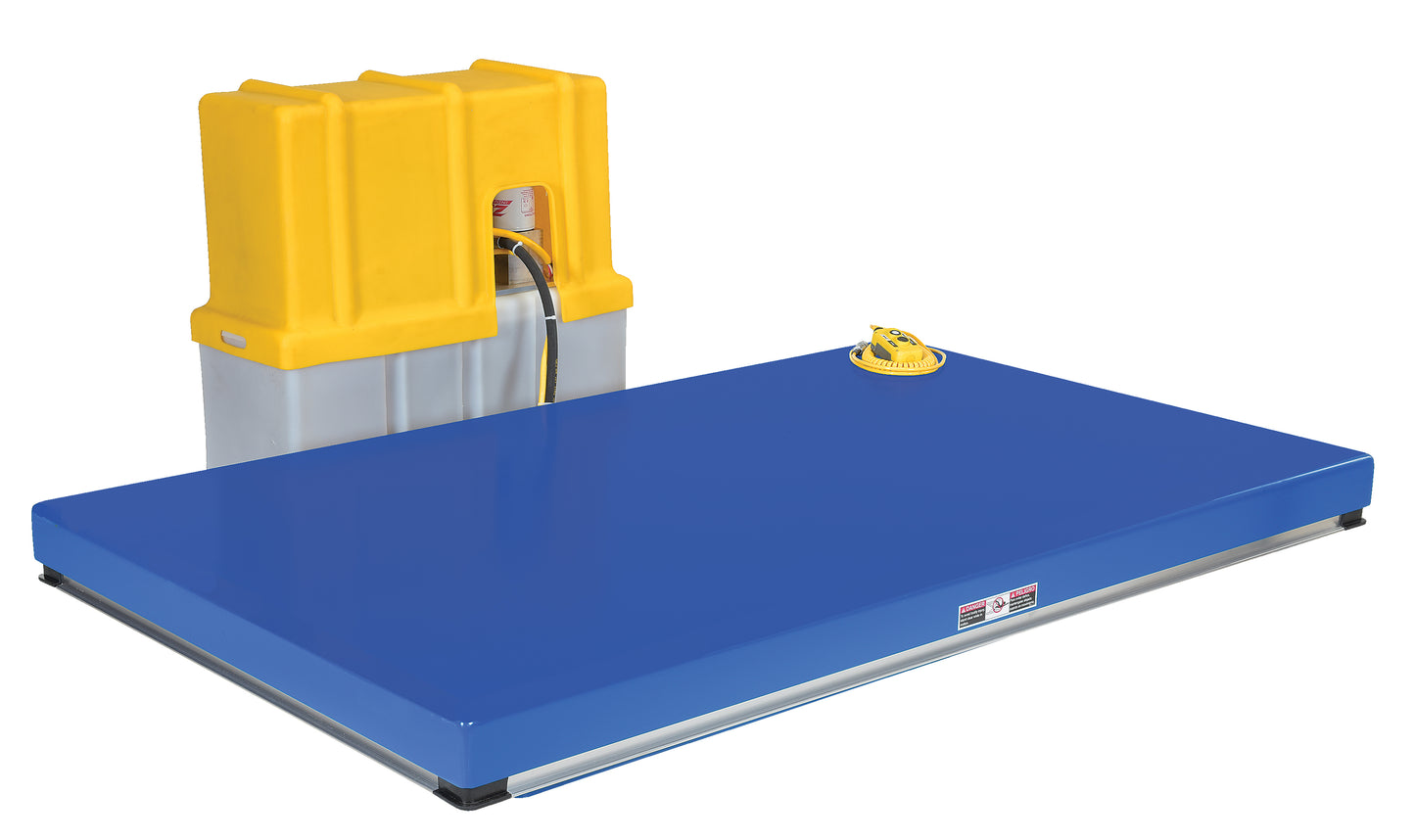

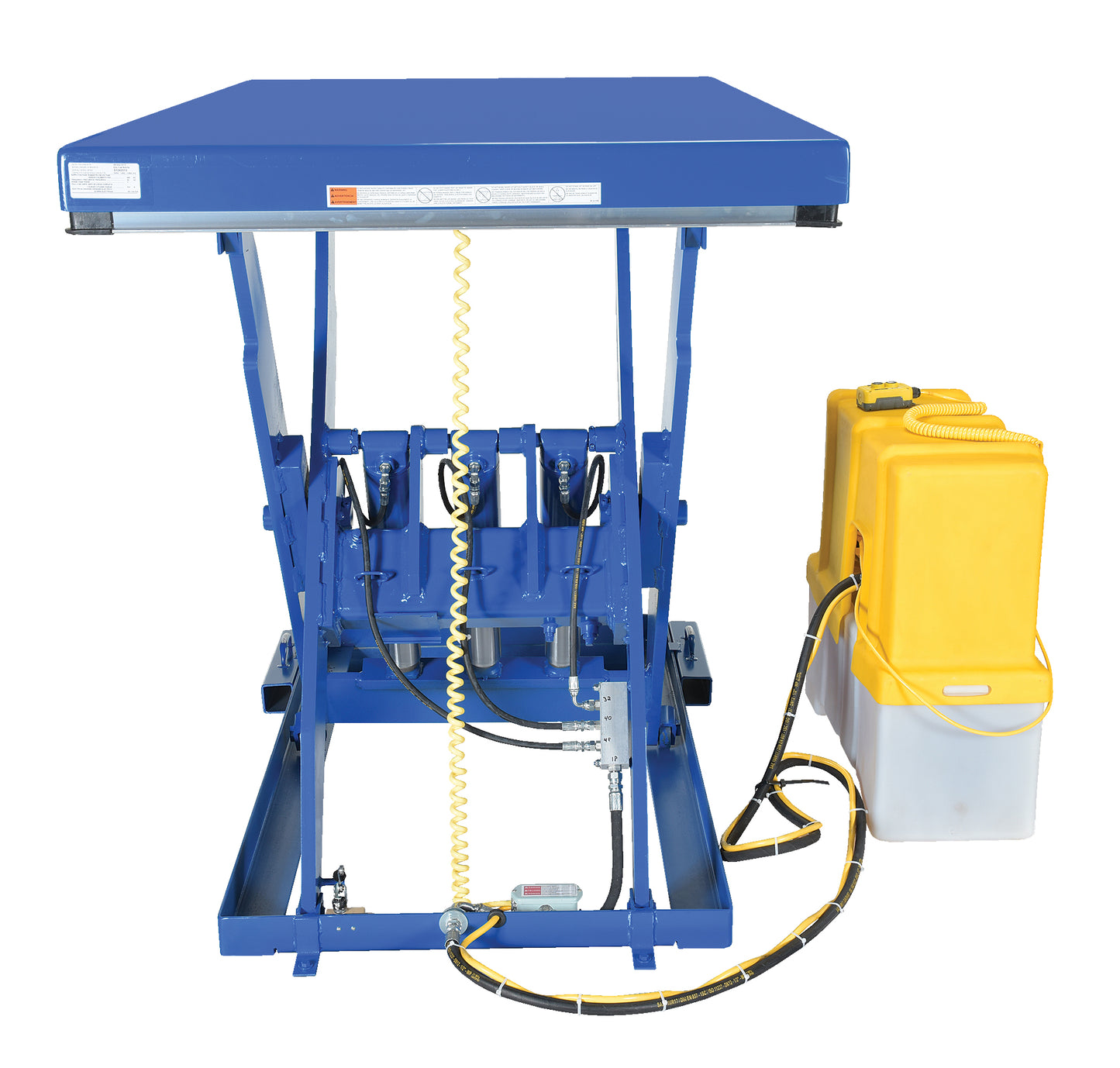

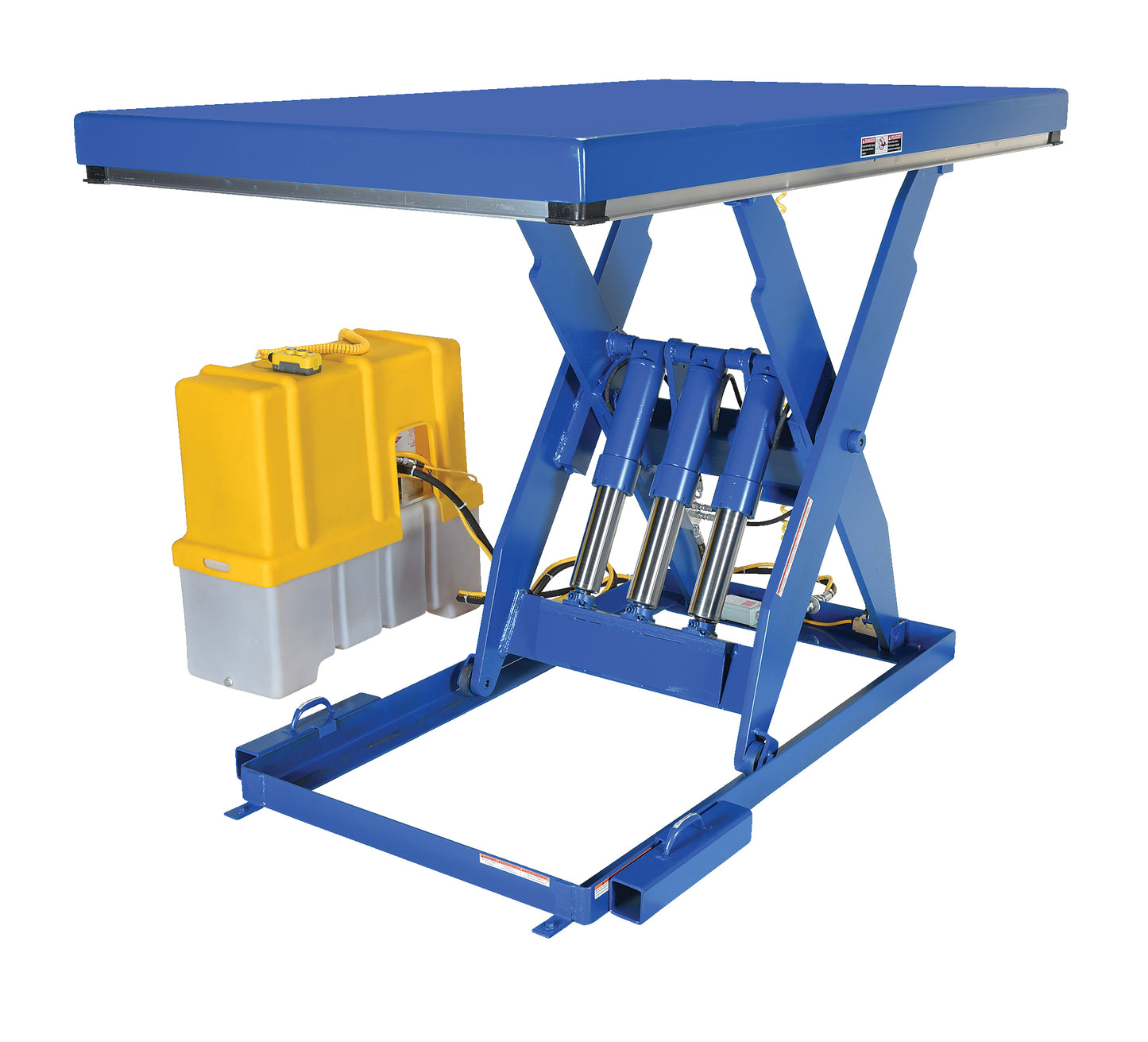

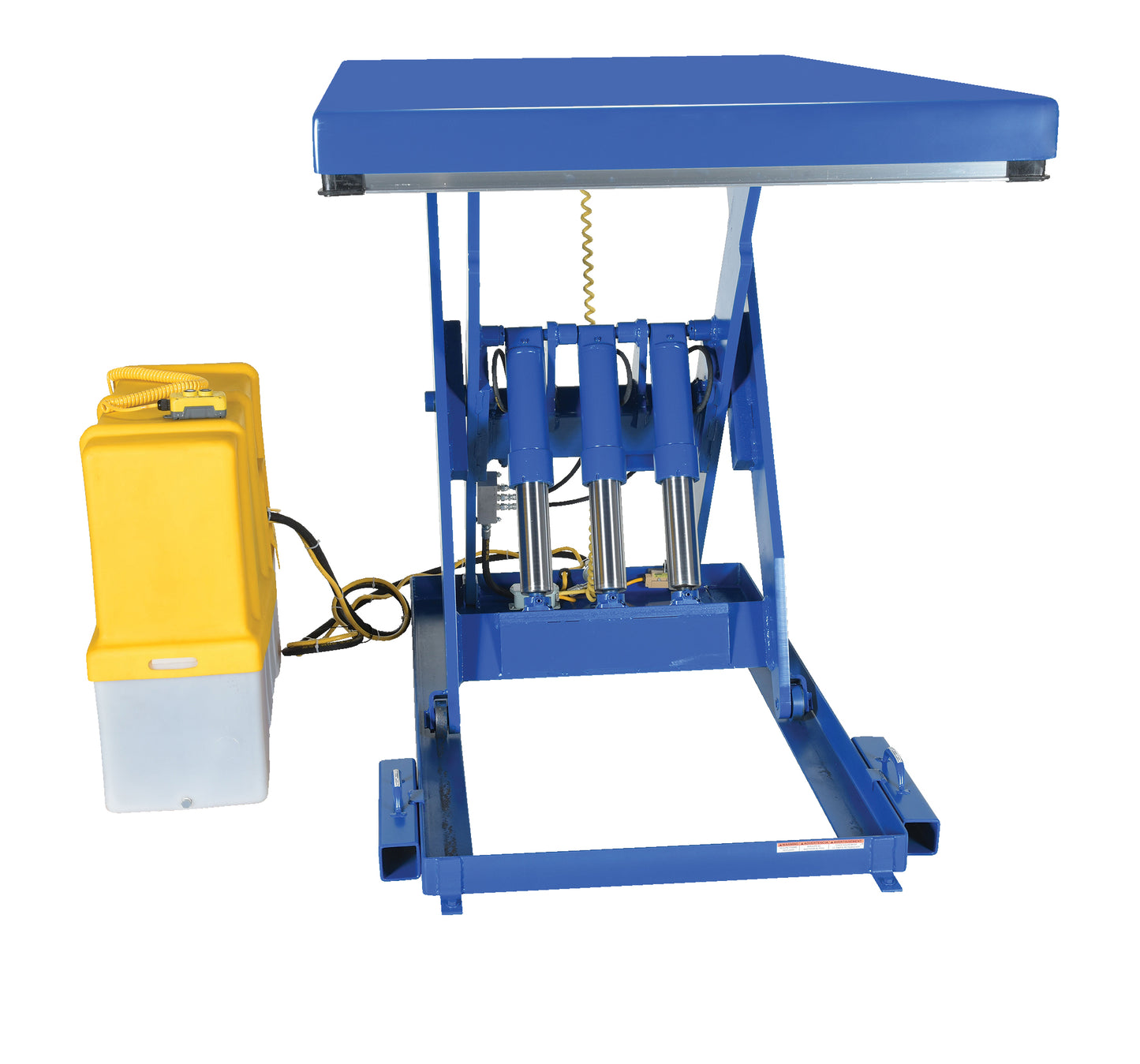

VESTIL - ELECTRIC HYDRAULIC LIFT TABLE 8K 56H

• 8,000 lb Capacity — Capable of handling extremely heavy loads with ease.

• 56″ Lift Height — Efficient for loading elevated surfaces and ergonomic positioning.

• Electric Hydraulic Operation — Powered by a sealed electric motor and hydraulic pump for precise and quiet lifting.

• Heavy-Duty Steel Construction — Rugged frame built for long-term workplace durability.

• Advanced Safety System — Includes electric toe guard, safety velocity fuse, upper-limit switch, and manual maintenance prop for maximum operator protection

• Capacity: 8,000 lb uniform load

• Lift Height (Raised): 56″ (with 8″ lowered height)

• Travel Time: Approximately 15 seconds (comparable travel in family specs)

• Platform Size: Standard models share 48"–64" widths and 96" long ranges—this model uses a heavy-duty steel deck conforming with line specifics

• Motor & Hydraulic System: Standard 2 HP, 460 V, 3-phase motor with 3,000 psi hydraulic components; voltage options available.

• Dimensions & Weight: Assembled weight approx. 1,574 lb

90-day limited parts warranty—covers defects under standard use. For assistance, contact Vestil at:
– Phone: 1-260-665-7586
– Email: info@vestil.com
