EKKO Series: Liquid Propane 4-Wheel Forklifts with solid pneumatic tires

Name: EKKO Series: Liquid Propane 4-Wheel Forklifts with solid pneumatic tires
Brand: EKKO
SKU: EK20TLP
Price: 32100.0 USD
Availability:  InStock

EKKO Series: Liquid Propane 4-Wheel Forklifts with solid pneumatic tires

$32,100.00

Shipping calculated at checkout.

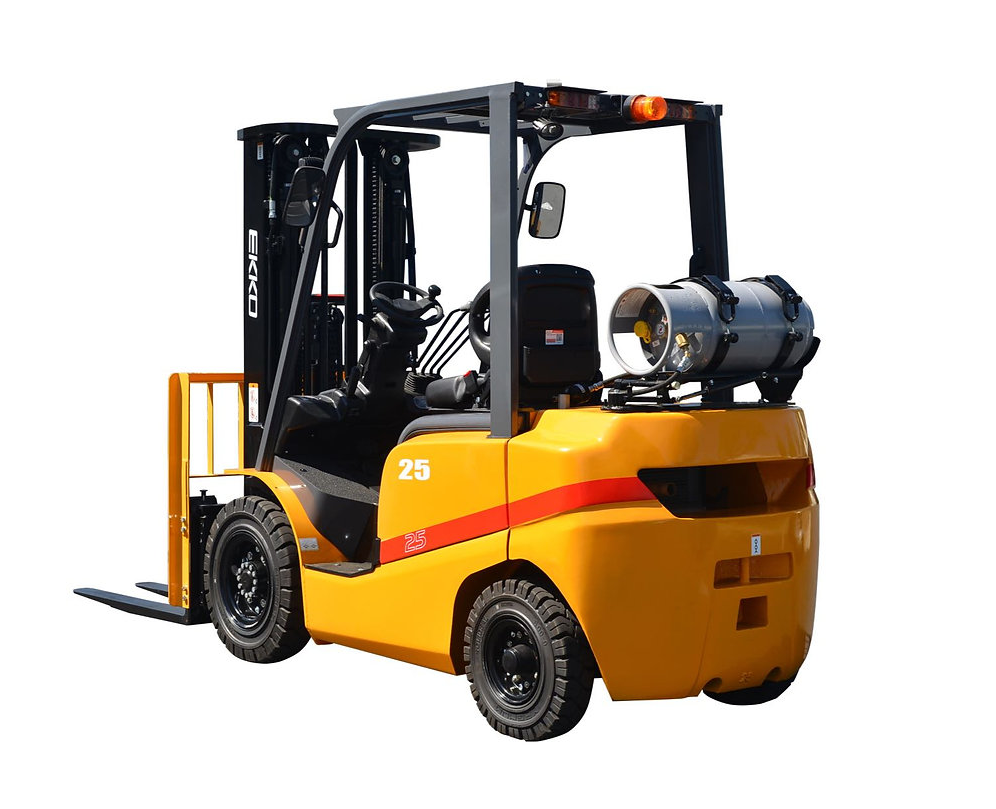

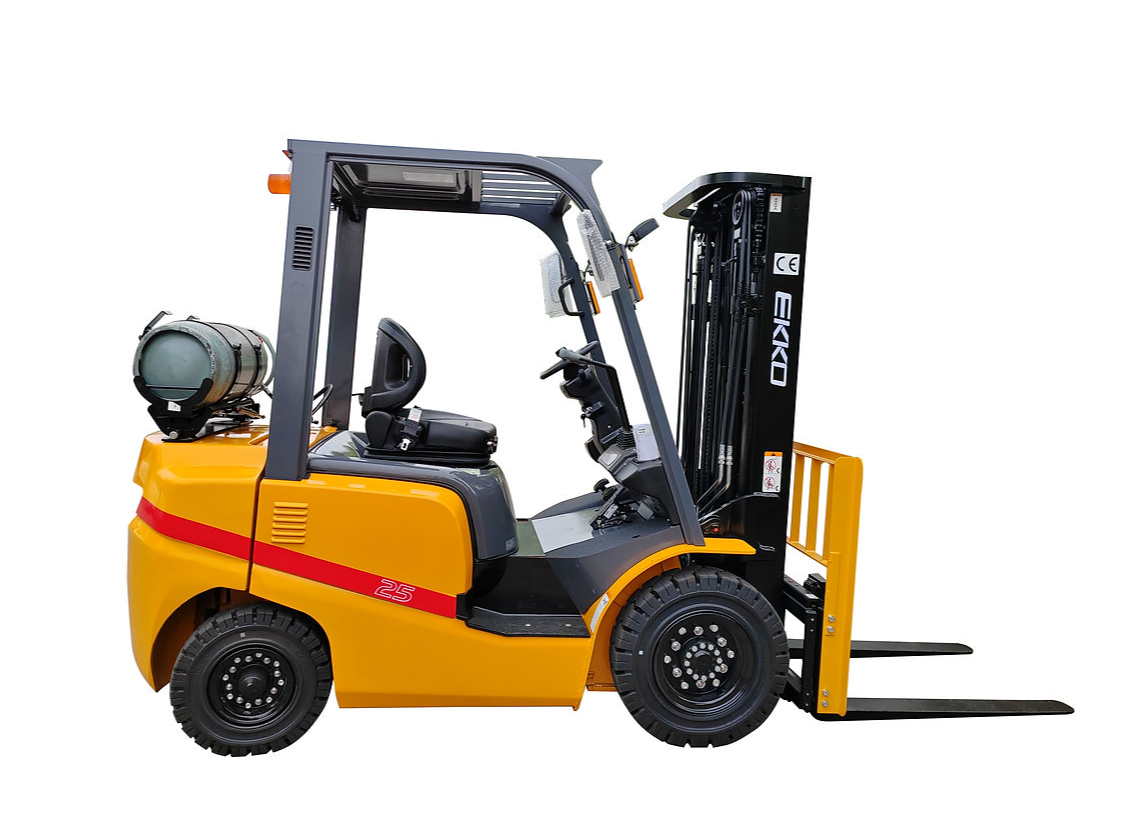

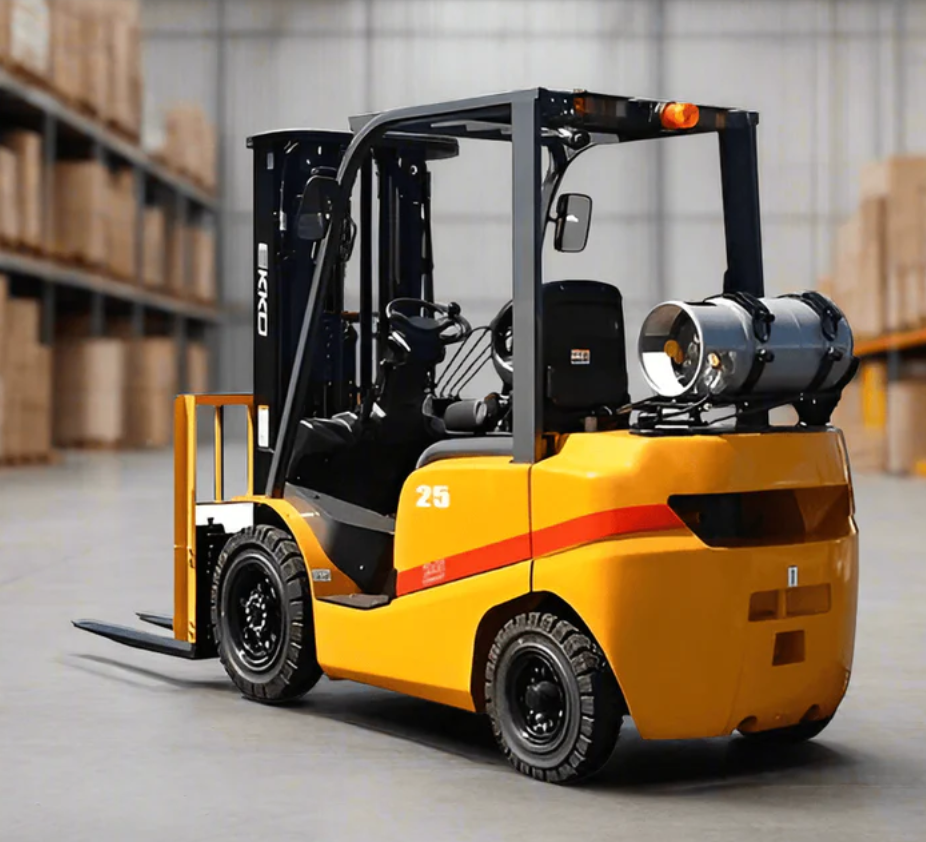

The EKKO EK20TLP and EK25TLP Liquid Propane 4-Wheel Forklifts are built to maximize efficiency, safety, and comfort in any warehouse, distribution center, or industrial facility. Engineered with KUBOTA engine, Tier 4 EPA-compliant engines, solid pneumatic tires, and an ergonomic operator cabin, these forklifts deliver superior handling, fuel efficiency, and durability. Whether you’re lifting pallets, loading trucks, or navigating tight aisles, these forklifts provide unmatched performance and reliability, making them the ideal choice for demanding material handling tasks.

Available in:
EK20TLP – 4,000 lbs capacity
EK25TLP – 5,000 lbs capacity
EK35TLP – 7,000 lbs capacity

⚡ Key Features

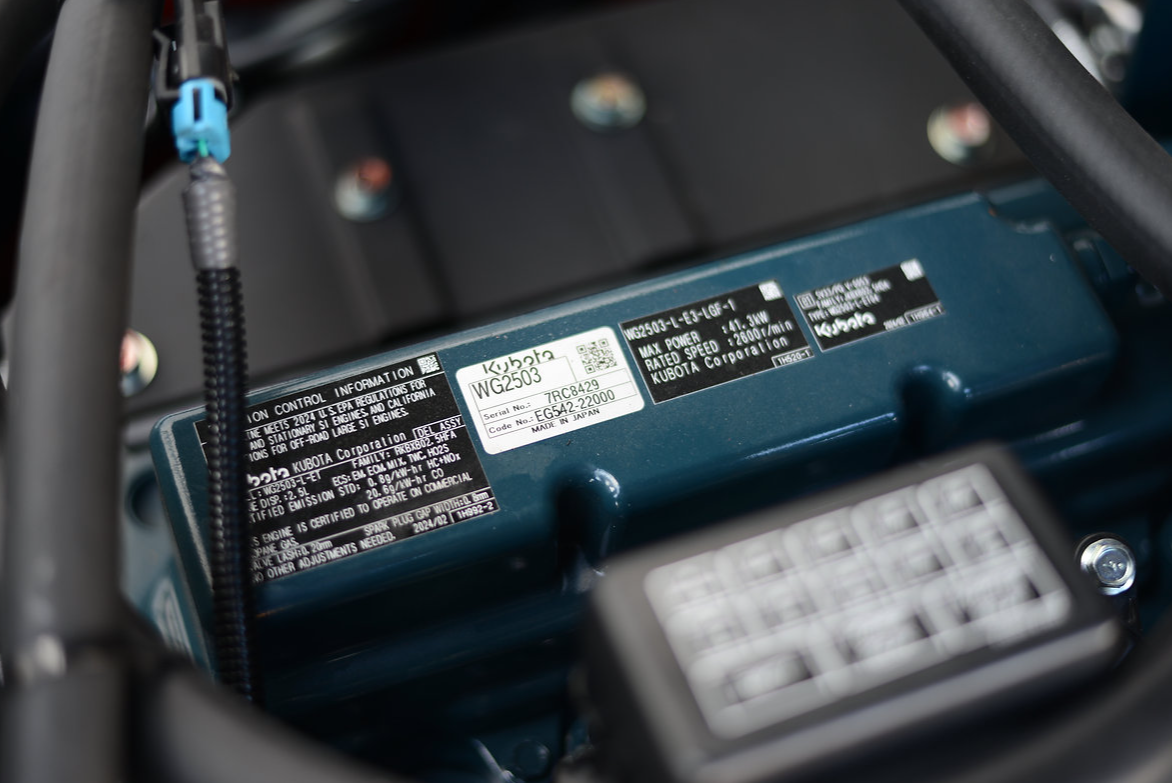

• Engine Options: Kubota or PSI 2.4L, Tier 4 EPA-compliant for power and efficiency
• Ergonomic Operation: Semi-suspension seat, small steering wheel, and automobile-type double combined switch for comfort
• Vibration Absorption: Full suspension cab and cushion connection reduce operator fatigue
• Shock Reduction: Lowering damping device minimizes mast vibration and noise
• Compact Turning Radius: Flexible steering for tight spaces
• Optimized Hydraulic System: Energy-efficient with lower fuel consumption
• Compliance: Engine meets CARB 4 regulations
• Cascade® Side Shift and Shimadzu® 4-Way Valve pre-plumbed
• Solid Pneumatic Tires for all-surface stability

🔧 Specifications

• Load Capacity: 4,000 lbs (EK20TLP) / 5,000 lbs (EK25TLP)
• Load Center: 24 in
• Lift Height: 185 in
• Free Lifting Height: 43.7 in
• Mast Overall Height: 83 in
• Overall Height with Forks Lifted: 225 in
• Wheelbase: 62.9 in
• Service Weight: 7,716 lbs (EK20TLP) / 8,465 lbs (EK25TLP)
• Tire Material: Solid Pneumatic
• Tire Size: 7.00-12-12PR / 6.00-9-10PR
• Service Brake: Hydraulic Floor Pedal
• Overall Width: 45.2 in
• Overall Length with Forks:
141.8 in (EK20TLP) / 144.6 in (EK25TLP)
• Overall Length without Forks:
96.8 in (EK20TLP) / 99.6 in (EK25TLP)
• Min Ground Clearance at Mast: 4.3 in
• Max Traveling Speed (Loaded/Unloaded): 10.6 / 11.8 mph
• Fork Size: 42.1 x 4.8 x 1.5 in
• Battery: 12V / 60Ah
• Engine Model: PSI 2.4L
• Engine Rated Power: 63 HP @ 2,700 rpm

🛡️ Warranty Information

• 3-Year Limited Structural Warranty (frame, forks, mast)
• 2-Year Engine Warranty
• 1-Year Parts Warranty
• 30-Day Wearable Items Warranty (tires, lights, etc.), excludes normal wear or misuse
