ES40E Ekko Scissor Lift Table

Name: ES40E Ekko Scissor Lift Table
Brand: Ekko
SKU: ES40E
Price: 12798.0 USD
Availability:  InStock

ES40E Ekko Scissor Lift Table

$12,798.00

$12,798.00 ~~$0.00~~

Shipping calculated at checkout.

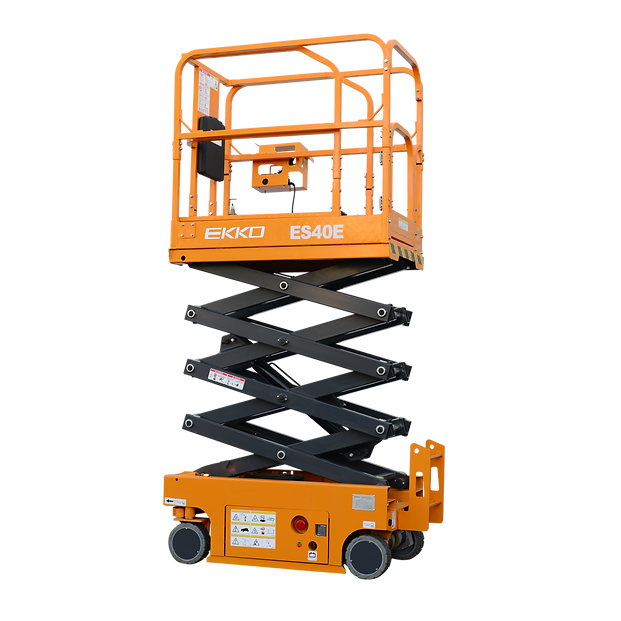

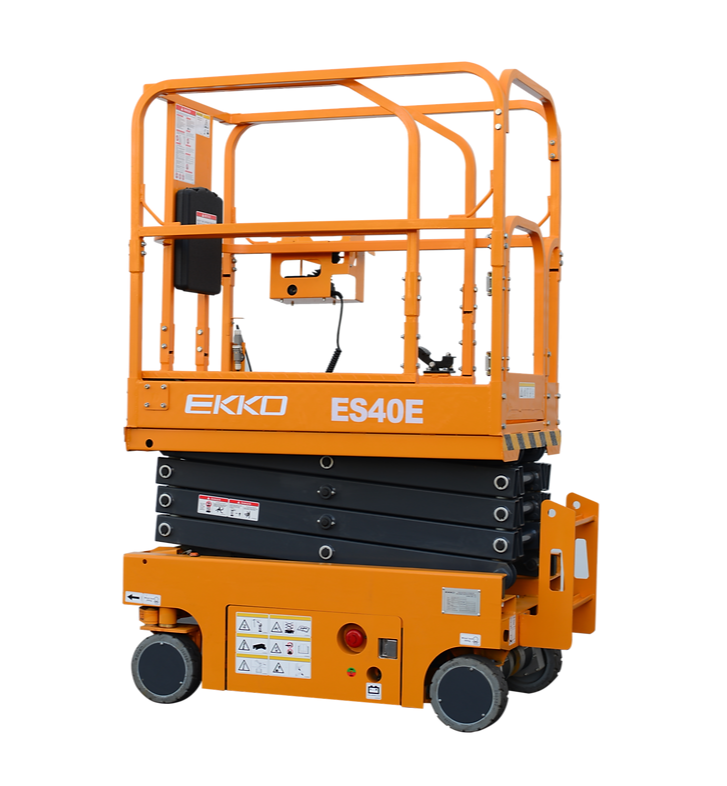

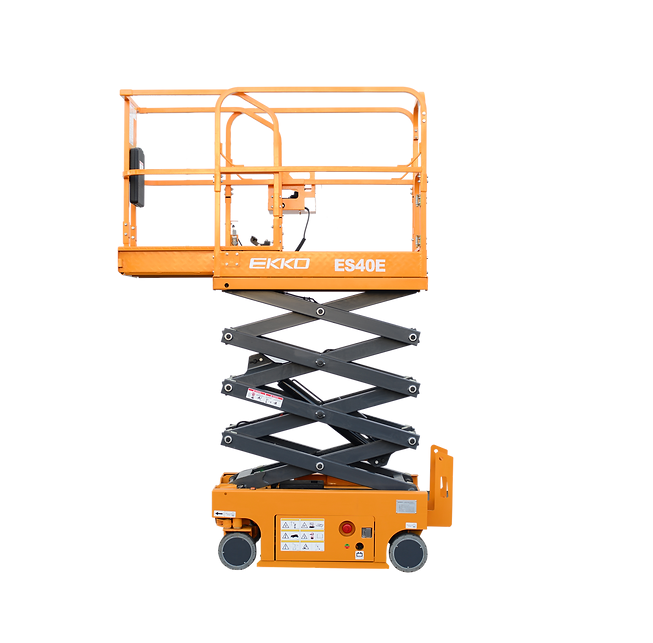

The EKKO ES40E Scissor Lift Table is a compact, heavy-duty solution designed to make material handling safer, faster, and more efficient. With a 506 lb load capacity, durable steel construction, and smooth four-wheel mobility, this lift table is perfect for warehouses, manufacturing floors, workshops, and distribution centers. Featuring a reliable Curtis controller and advanced safety compliance with GB25849 and EN280 standards, it ensures stable lifting and easy maneuverability. Whether you’re lifting, positioning, or transporting goods, the ES40E delivers the strength, safety, and convenience you need—making it the ideal choice for all your material handling needs.

⚡ Key Features

• Compact & Versatile: Slim 30" wide design fits through standard doorways and aisles.

• Strong Capacity: Safely lifts up to 500 lbs with a 157" (13 ft) platform height.

• Extended Reach: Platform extension of 23.6" supports extra workspace.

• Heavy-Duty Build: Steel construction with robust guardrails for long-lasting durability.

• User-Friendly Operation: Proportional controls ensure smooth lifting and driving.

• Mobility & Maneuverability: Zero inside turning radius and polyurethane wheels make tight spaces easy.

• Safe & Reliable: Includes tilt protection, braking system, and meets GB25849 / EN280 safety standards.

• Powerful & Efficient: Equipped with 24V battery system and on-board charger.

• Ideal For: Warehouses, manufacturing, assembly lines, and facility maintenance.

🔧 Specifications

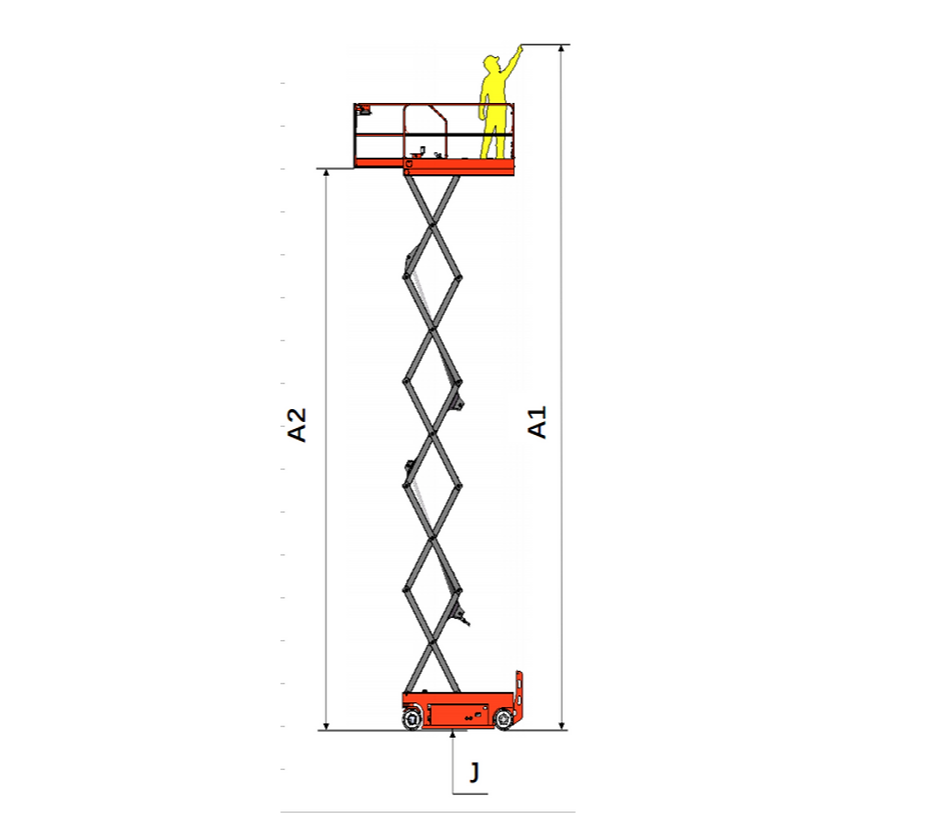

• Maximum Working Height: 19.7' (236.2")
• Maximum Platform Height: 13' (157")
• Lowered Height: 77"
• Guardrail Height: 43.3"
• Platform Extension: 23.6"
• Ground Clearance (closed/lifting): 2.36"/0.59"
• Wheelbase: 40.6"
• Maximum Number of Workers: 2 (indoor)
• Extended Platform Load Rating: 220 lbs
• Driving Speed (folding/lifting): 0–4 km/h / 0–0.8 km/h
• Minimum Turning Radius: 0" (inside) / 61" (outside)
• Rise/Fall Time: 25s / 25s
• Maximum Allowable Tilting Angle: Front 3° / Left/Right 1.5°
• Maximum Allowable Wind Speed: Indoor 0 m/s
• Gradeability: 25%
• Lift/Drive Motor: 1.2 kW / 0.4*2 kW
• Battery Voltage/Capacity: 12x2 / 100 Ah
• Charger Input Voltage: 100–240 VAC
• Charger Output Current: 10 A
• Control Voltage: 24 VDC
• Hydraulic Tank Capacity: 3 L

🛡️ Warranty Information

The EKKO ES40E Scissor Lift Table comes with a 3-Year Limited Warranty, covering key components and manufacturing defects. Designed to give you confidence in your purchase, it ensures reliability and long-lasting performance for your warehouse or industrial operations.
