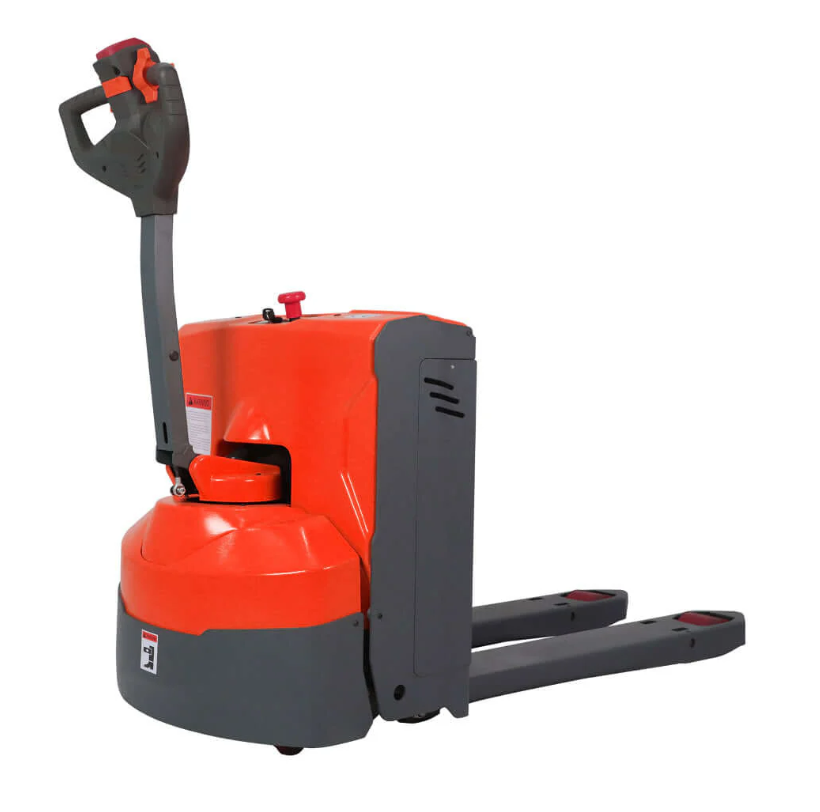

Tory Carrier - Electric Pallet Jack – 4,400 lb Capacity with 48"L x 27"W Forks, Lithium Battery – Model R-1023

• Compact & Agile: Tight turning radius with turtle mode for precise control in narrow aisles
• Built-in Safety: Overload protection, emergency power-off, belly switch reverse, and lift height limits
• Elevated Drive Motor: High-mounted to resist water, dust, and oil damage
• Stable Performance: Floating balance wheels reduce lateral sway for smooth travel
• Heavy-Duty Hydraulics: Low-pressure, large-plunger design for durability and reduced failures
• Battery Care Tip: Charge monthly when not in use to extend battery lifespan

• Model Number: R-1023
• Capacity: 4,400 lbs

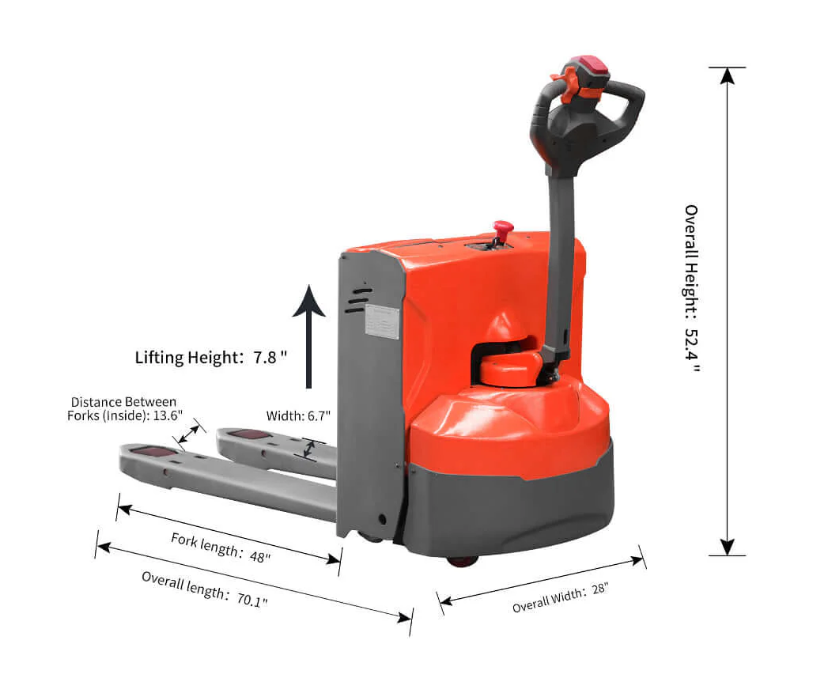

• Overall Size: L70 in x W 28 in x H 52.4 in
• Max Lifting Height: 7.8 in
• Fork Length: 48 in
• Forks Overall Size: W 6.7 in × H 2.1 in × L 48 in
• Inside Distance Between Forks: 12.8 in
• Fork Lowered Height: 3.2 in
• Turning Radius: 62.6 in
• Aisle Width: 95.2 in
• Service Weight: 1,074 lbs
• Driving Speed (Laden/Unladen): 3.6 mph | 3.7 mph

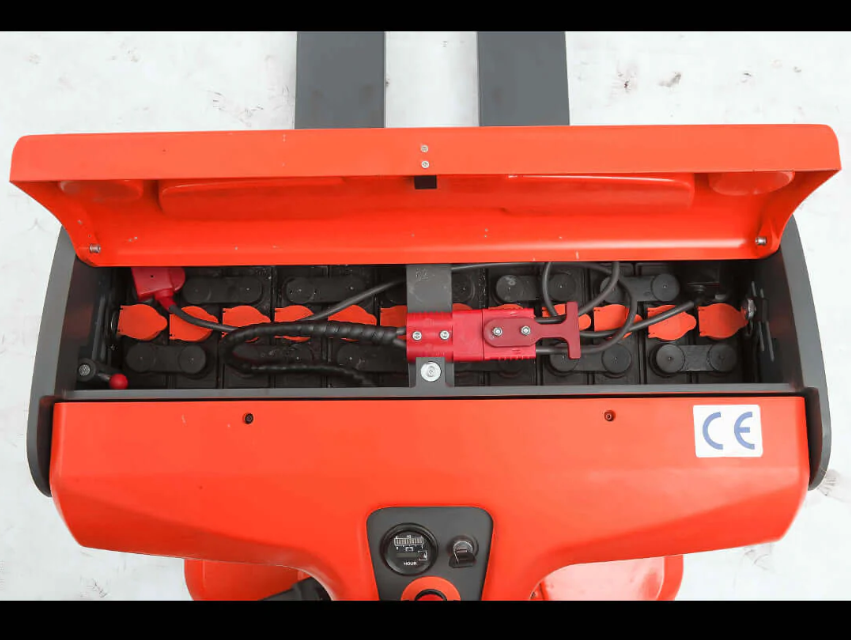

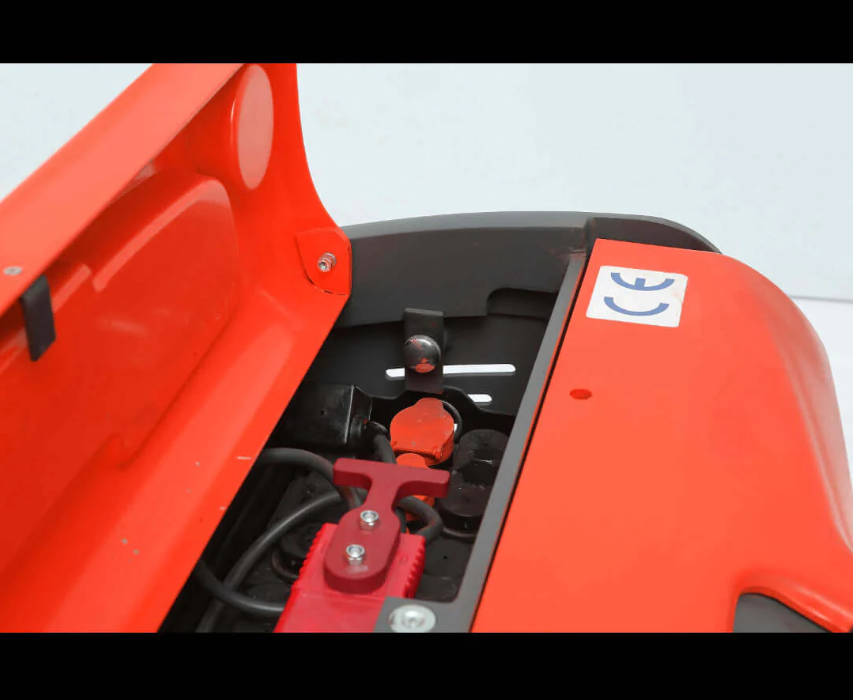

• Battery Capacity: 180Ah
• Battery Voltage: 24V
• Charger: 24V / 30A (Built-out)
• Lifting Distance: 4.7 in

• 1-Year Warranty from Delivery Date
• First 30 Days: Free replacement parts, free round-trip shipping, and remote technical support
• Day 31 to 1 Year: Free replacement parts and one-way shipping (customers cover return shipping if needed)
• After 1 Year: Lifetime technical support (customers cover parts and shipping)
• Battery Warranty: 6 months
• Spare Parts Warranty: 3 months
• Used Units: 3-month parts-only warranty (no labor or returns)

Note: Wear-and-tear parts and damage caused by misuse or improper handling are not covered.
