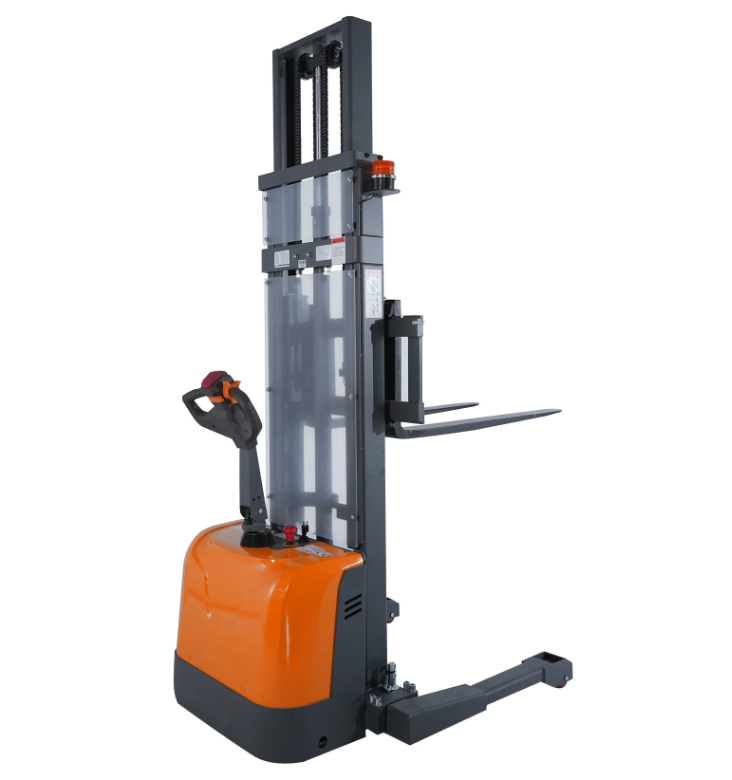

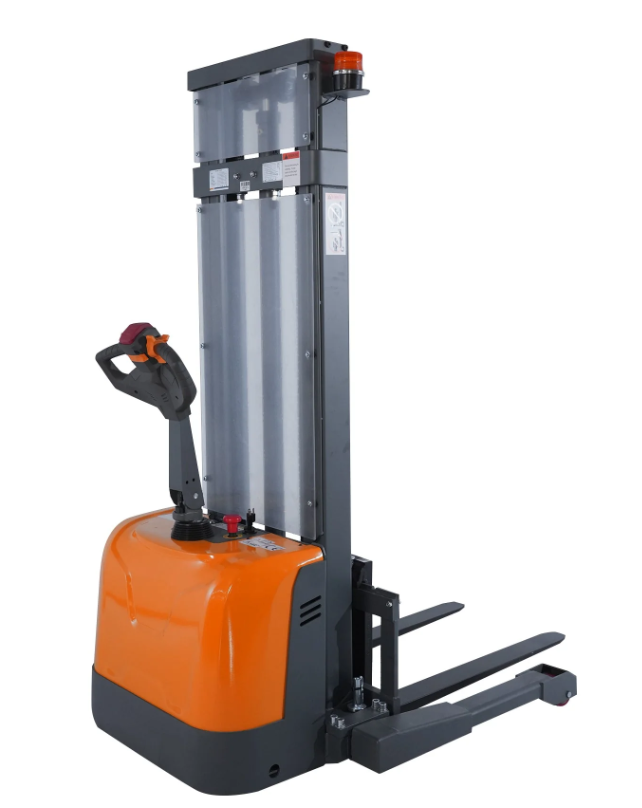

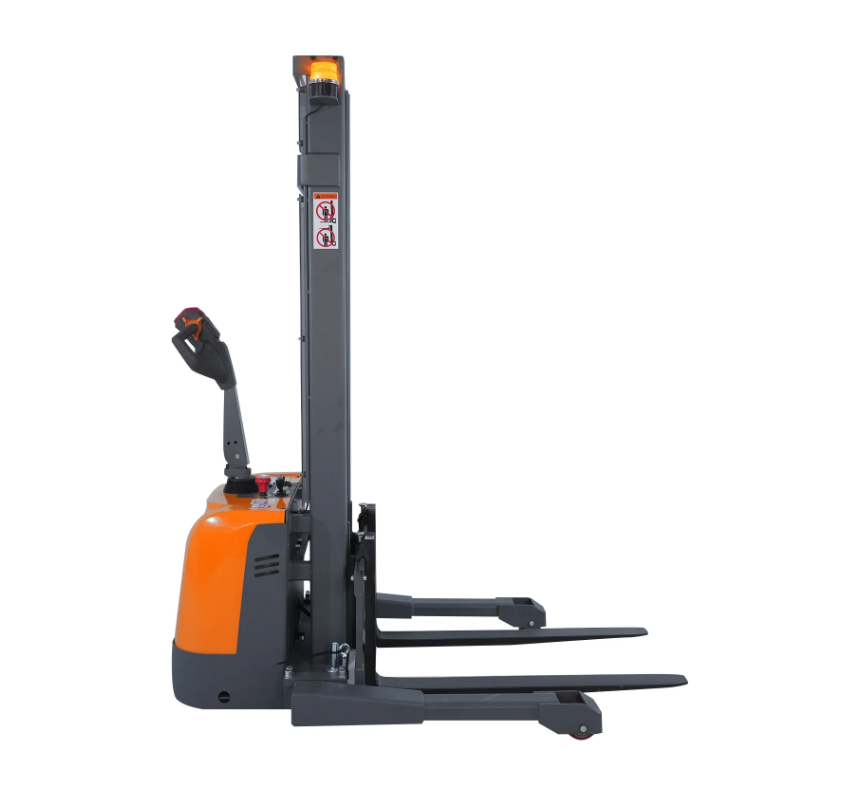

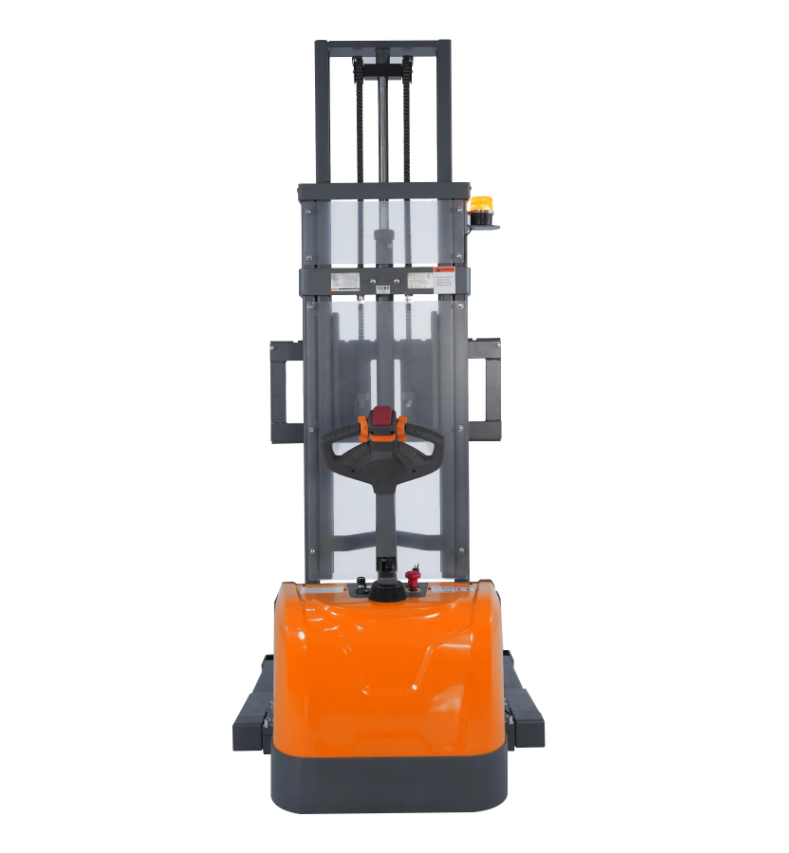

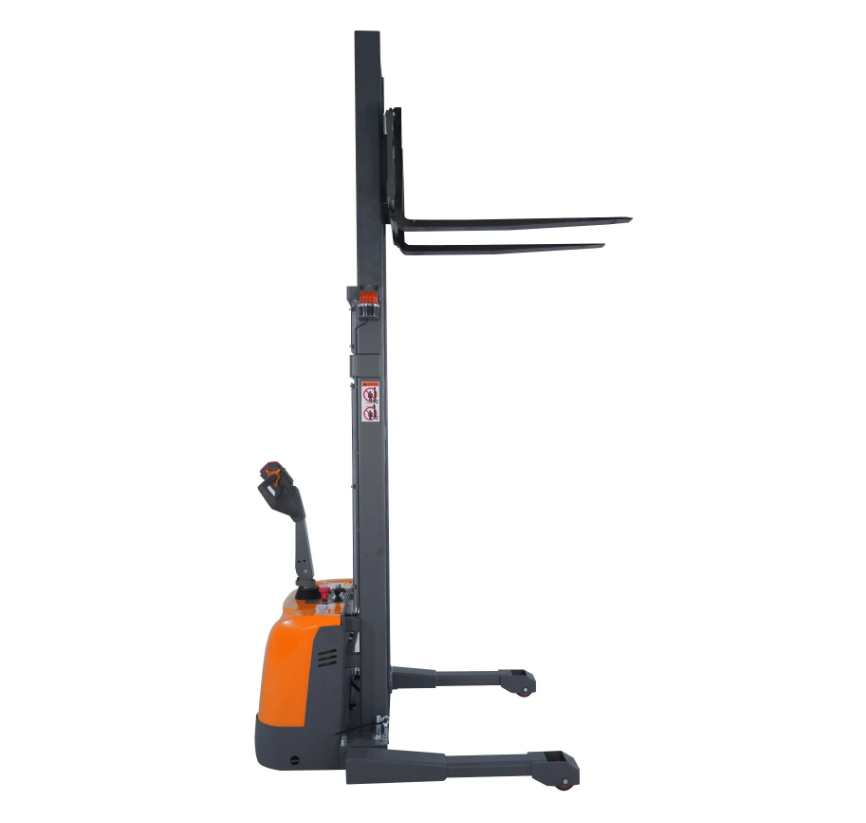

Tory Carrier T-3050 Fully Powered Electric Stacker with Straddle Legs – 3,300 lb Capacity, 98″ Lift Height

Name: Tory Carrier T-3050 Fully Powered Electric Stacker with Straddle Legs – 3,300 lb Capacity, 98″ Lift Height
Brand: Tory Carrier
SKU: T-3050
Price: 5749.0 USD
Availability:  InStock

Tory Carrier T-3050 Fully Powered Electric Stacker with Straddle Legs – 3,300 lb Capacity, 98″ Lift Height

$5,749.00

Shipping calculated at checkout.

The Tory Carrier T-3050 is a high-performance electric stacker engineered for demanding warehouse and high-rack environments. With a 3,300 lb load capacity and a 98-inch lift height, it’s designed to move heavy loads efficiently and safely. Features like adjustable straddle legs, GEL maintenance-free battery, and durable construction make it ideal for flat floor operations, tight aisles, and continuous use. Trust the T-3050 to deliver power, reliability, and ergonomic operation for your material handling needs.

👉 Available in models: T-3047 Lift Height 118" | T-3049 Lift Height 130"

Product Manual - CTD15R-EN_20240613.pdf

⚡ Key Features

• 3,300 lb load capacity ideal for heavier pallets and dense loads

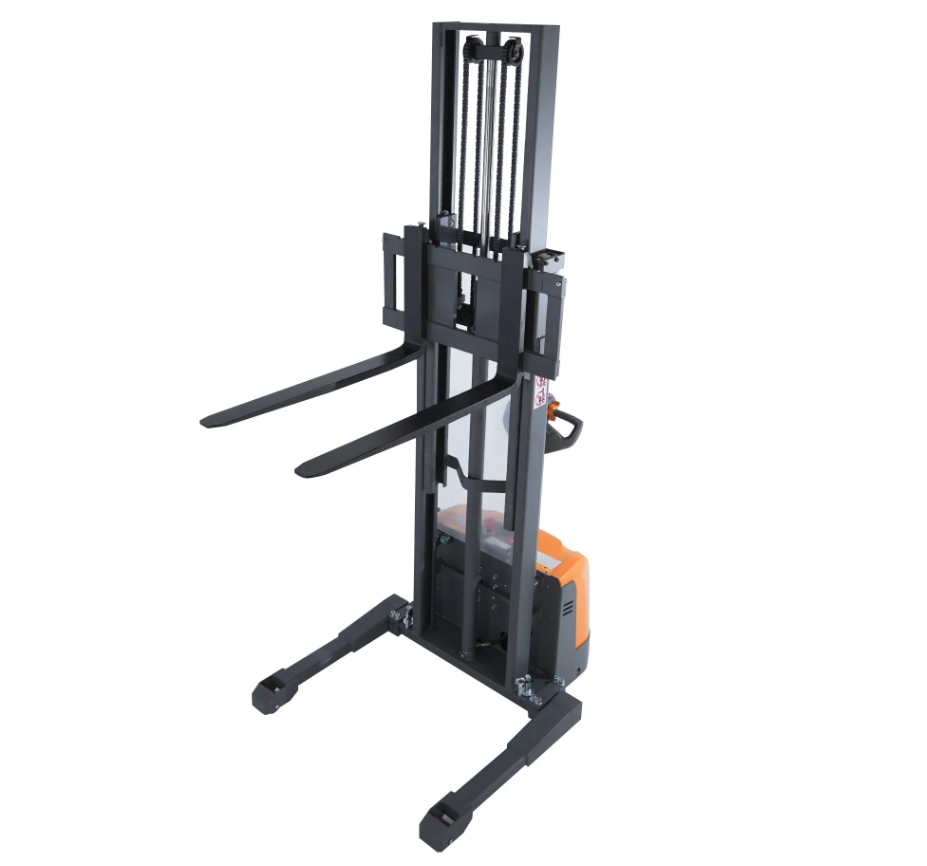

• Adjustable straddle leg width (46.5″–62.3″) for flexible load configurations
• Powerful 650W drive & 2200W lift motors for smooth lifting and transport
• Max lift height of 98″ for high-rack access
• Compact lowered fork height (2.8″) to handle low clearance pallets
• Small turning radius (~53″) for maneuvering in tight spaces

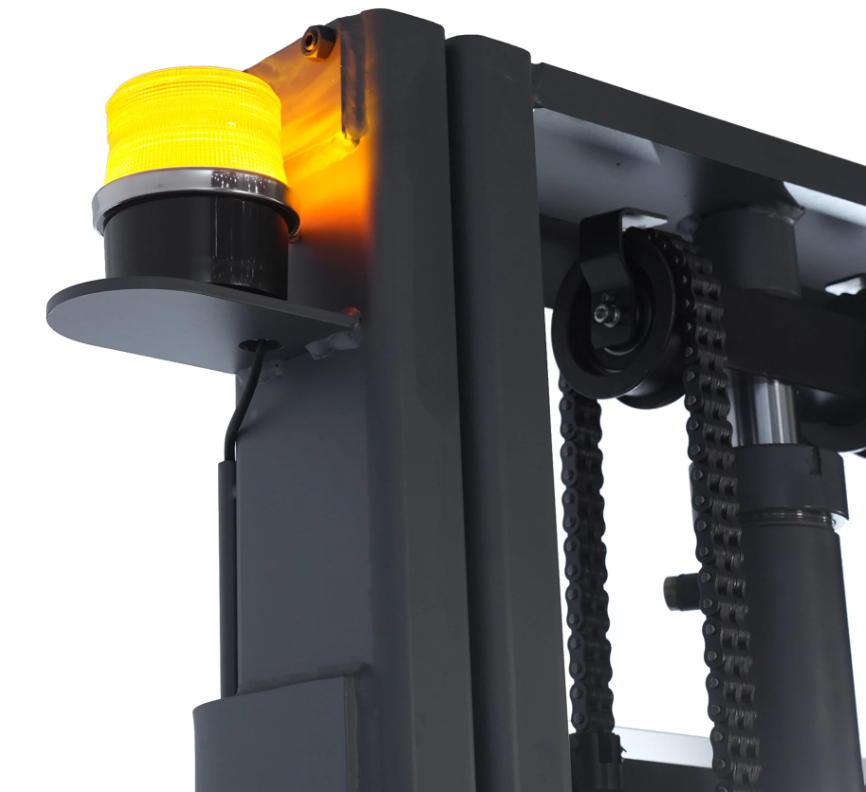

• Built-in safety features: plexiglass shield, explosion-proof valve, warning light & buzzer

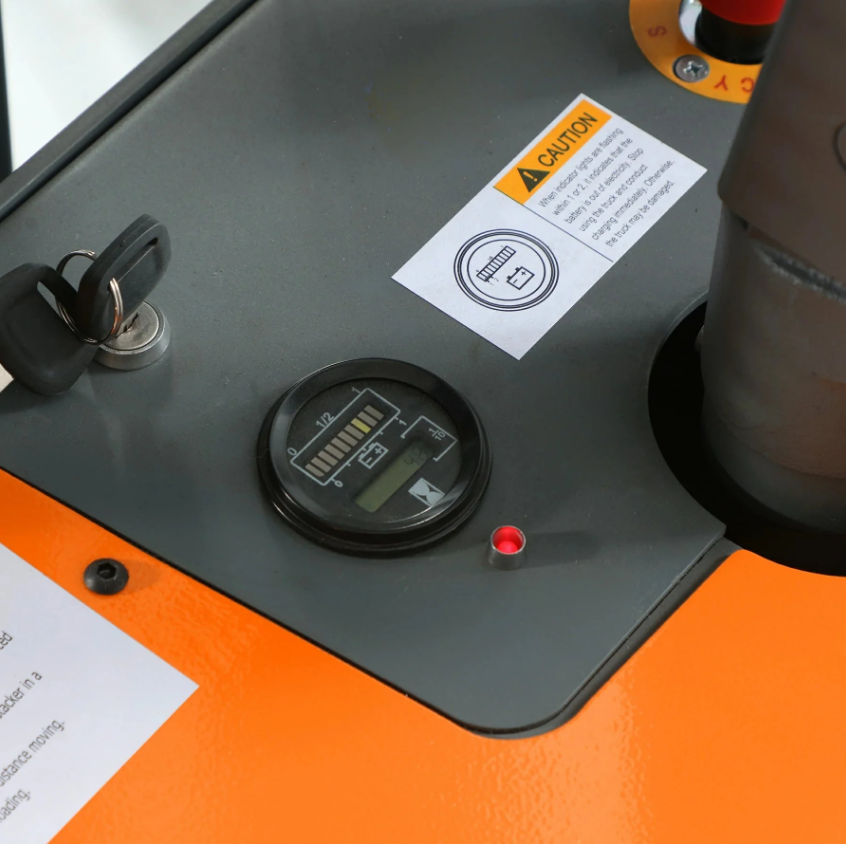

• GEL battery, maintenance-free, with battery level display & external charger connector

🔧 Specifications

• Model: T-3050
• Load Capacity: 3,300 lbs
• Service Weight (with battery): 1,350 lbs
• Lift Height (raised): 98″
• Mast Height (lowered): 74.6″
• Mast Height (extended): 123.8″
• Fork Lowered Height: 2.8″

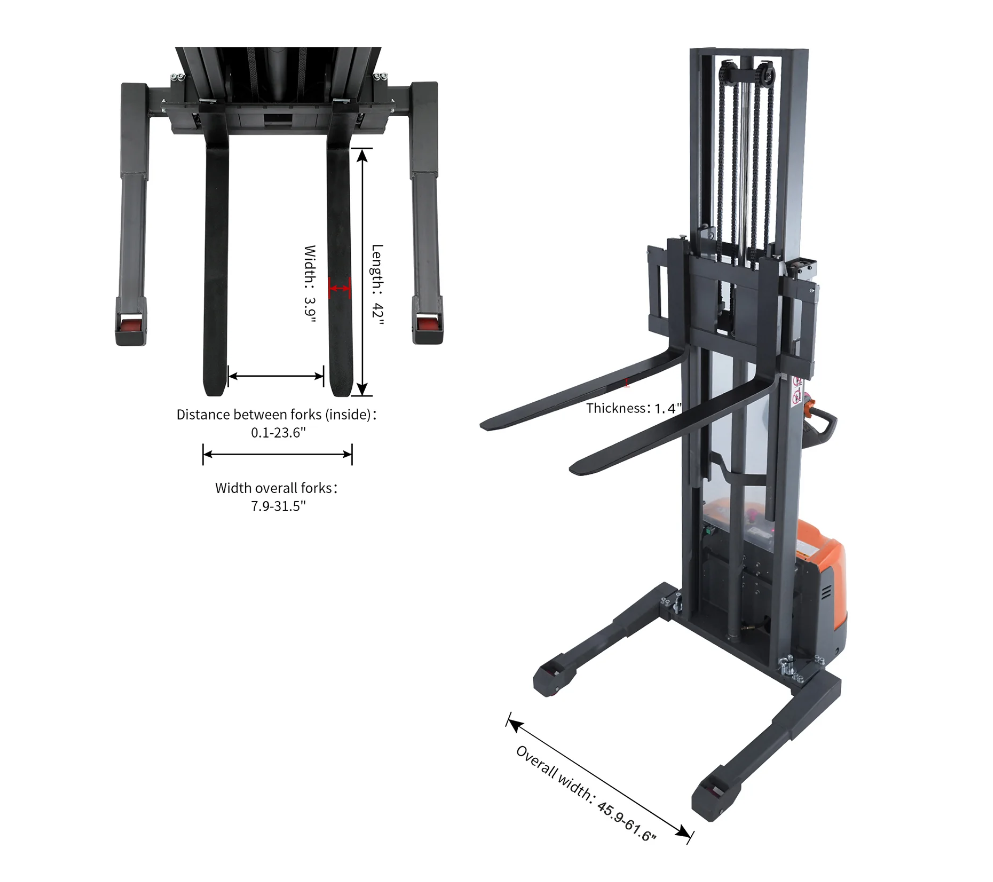

• Fork Dimensions (T × W × L): ≈1.4″ × 3.9″ × 42″
• Overall Width (straddle legs): 46.5″–62.3″
• Turning Radius: ~53″
• Travel Speed (Laden / Unladen): ~2.8 / 3.1 mph
• Lift Speed (Laden / Unladen): ~3.5 / 5.9 in/s
• Lowering Speed: ~5.9 / 4.3 in/s
• Battery Type: GEL, 24V / 100Ah
• Charger: Built-in 10A
• Working Time per Charge: ~6-8 hours
• Charging Time: ~8-10 hours

🛡️ Warranty Information

• 1-Year Warranty from date of delivery
• First 30 days: Free replacement parts, round-trip shipping, remote technical support
• Days 31–1 year: Free replacement parts; one-way shipping covered (customer pays return shipping)
• After 1 year: Free lifetime technical support only (customer pays parts & shipping)
